There is a 200 amp 2 phase service available for lights, and a 100 amp for sound. Please note that there is NO 3 phase power at the Alcazar

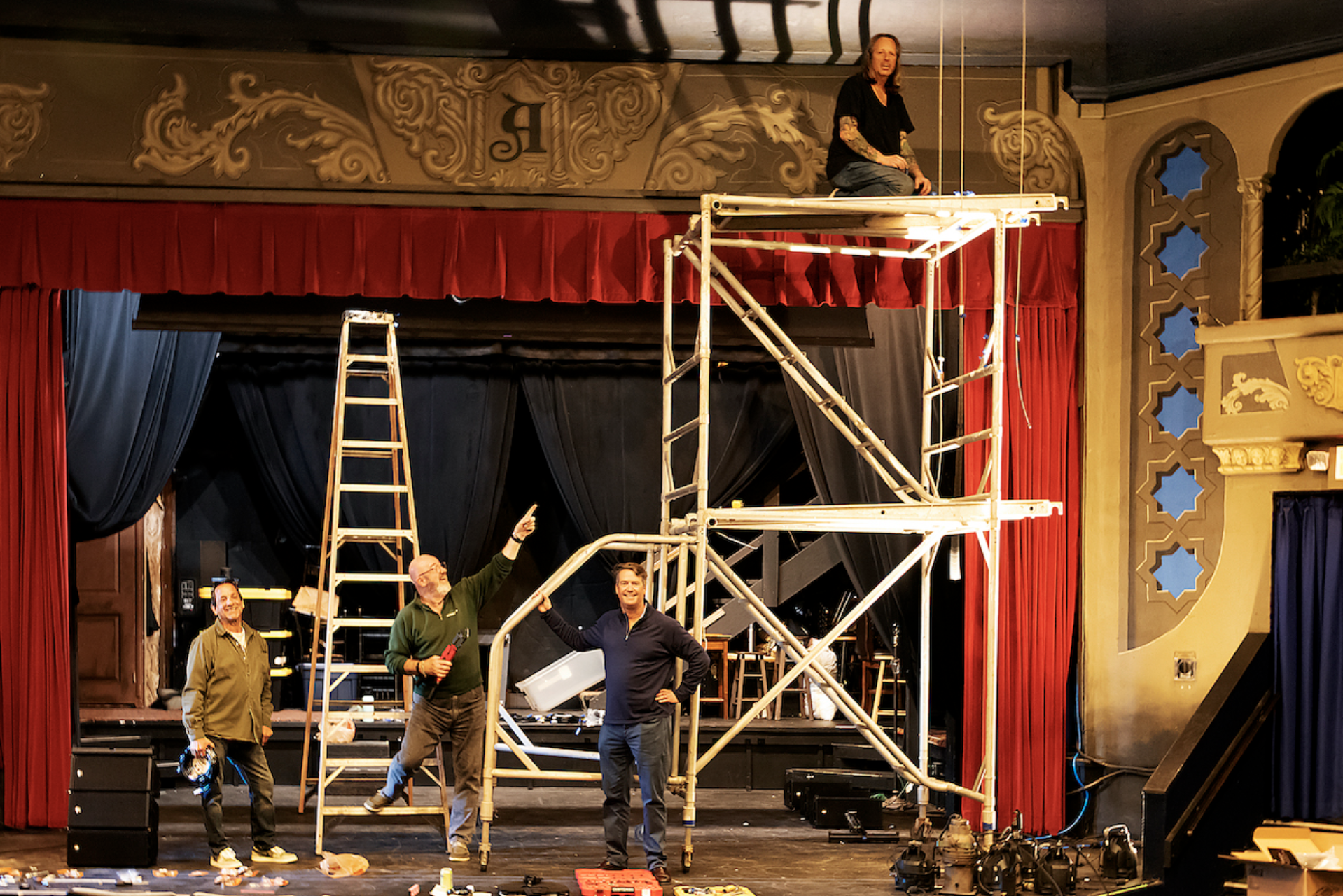

The stage at Alcazar is 18 feet deep and 23 feet wide with an additional 3 feet of floor wings on both sides. There is a riser available for drum sets, and a second level across the back of the stage.

There is a 105db limit as measured from the FOH position. This limit includes any transients or spikes. We have enacted this limit for a couple of reasons: The comfort of our guests and staff, regardless of the genre.

The in house system is a Nexo Alpha series rig. The FOH position is located just off center, 50 feet from the downstage edge of the stage. We do not move our FOH console. There is room for two 6 space FOH racks if you carry one. NOTE: The Midas inserts are separate send / return, TRS style. Monitors are mixed from stage left.

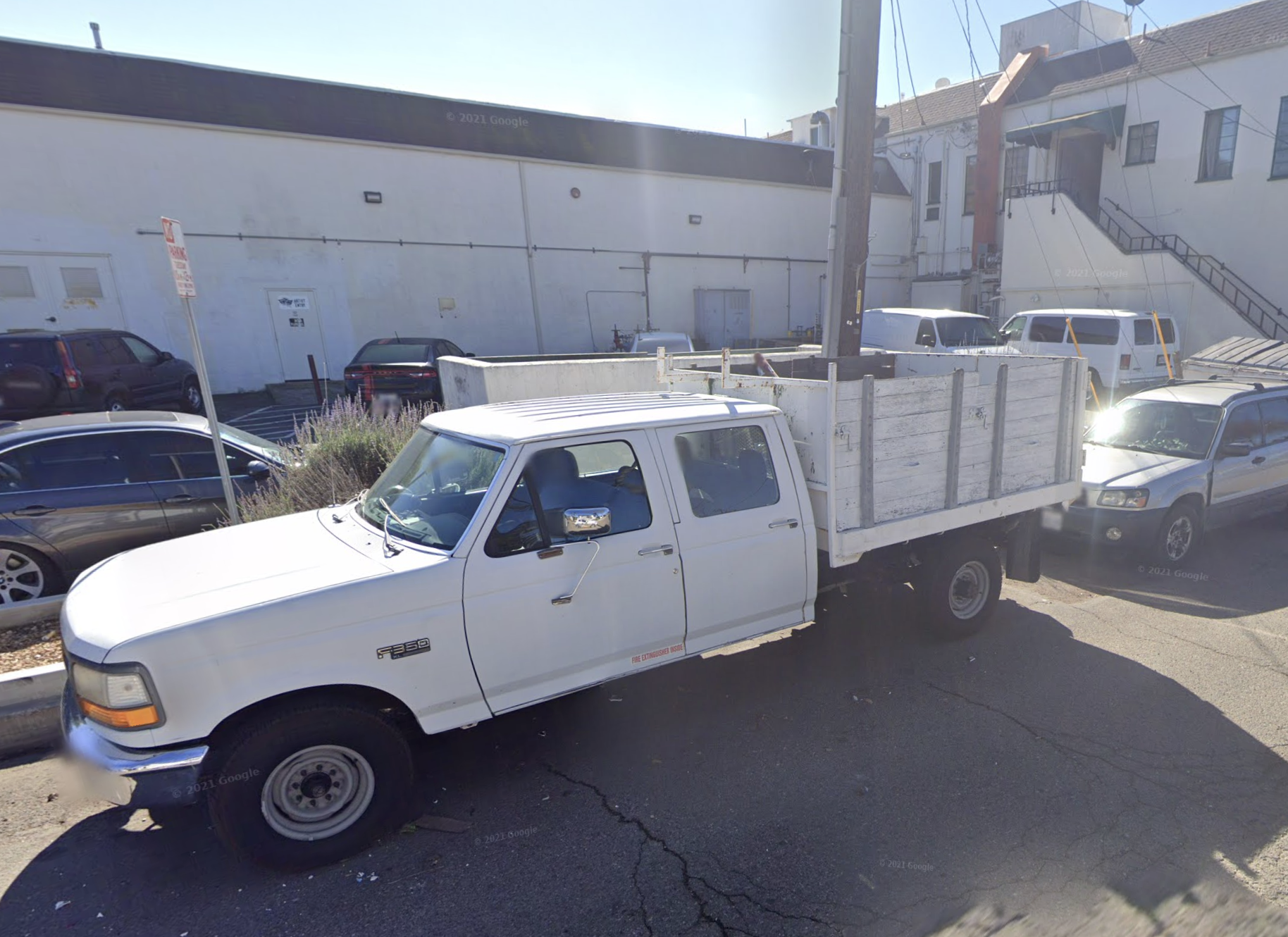

Up short ramp (33-1/2 inches wide by 118 inches long) from street on north side of venue (Elm Lane at Carpinteria Avenue), through single doors (30″ w x 83″ H) directly onto the main floor, stage left. The very few items that are too tall to fit through the door can go up the alley, and in through the back door. Height to Grid: 14 feet

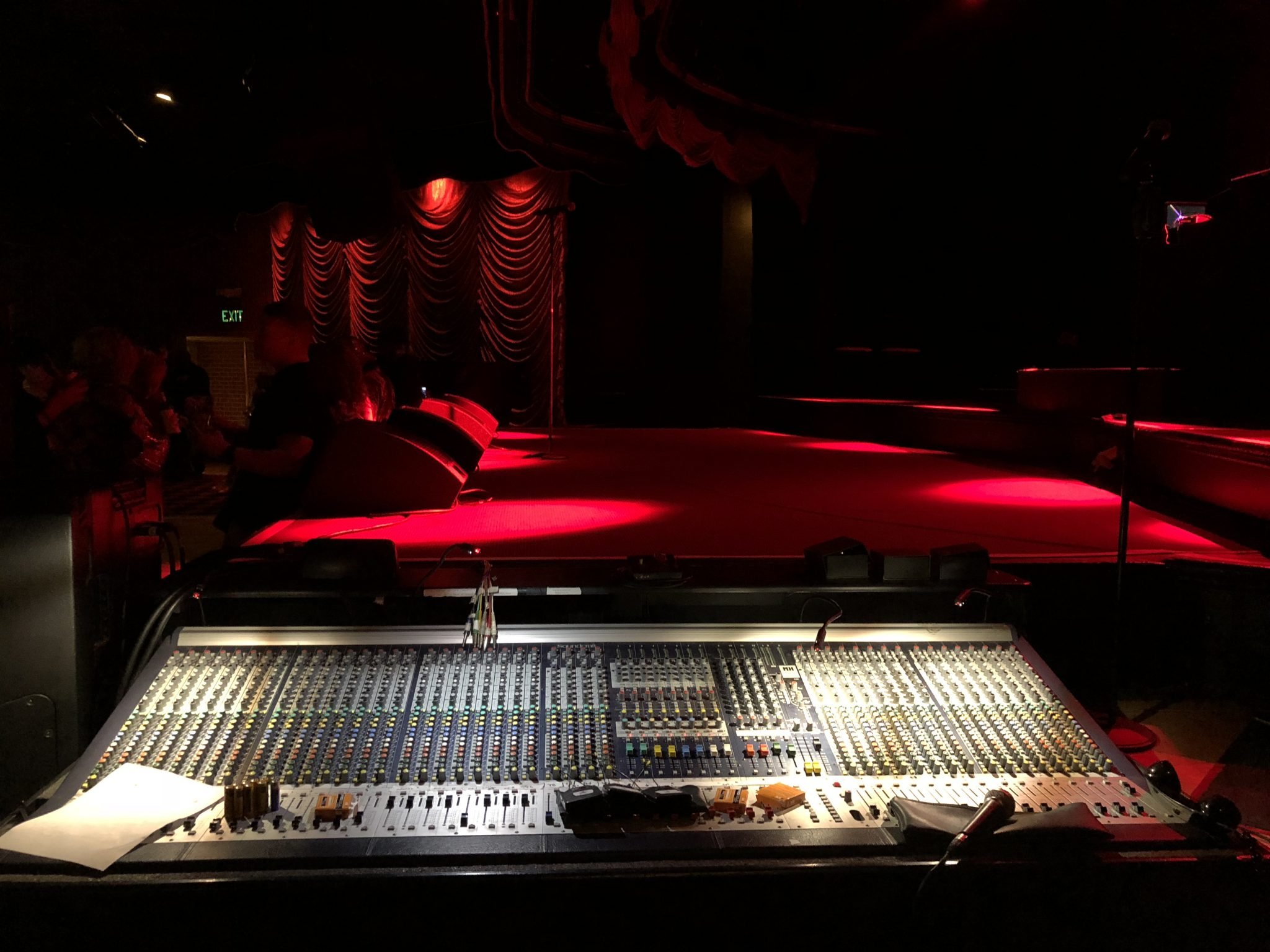

FOH: MIDAS XL-200 (44 mono, 4 stereo modules). Fully recapped in August 2015. 54 snake lines from stage via Ramtech Stagebox 54. 1 x KT DN360 stereo 1/3 octave EQ, for Left and Right 1 x KT DN360 stereo 1/3 octave EQ, for Center Fill and Rear Delays OMNIDRIVE Compact Plus

1 CD player and Clearcom 16 x Channels of compression as follows: 1 x Drawmer DL 441 (4 channels compression) 1 x Drawmer DL 241 (2 channels compression) 2 x BSS DPR 402 (4 channels compression) 1 x BSS DPR 404 (4 channels compression)1 x Summit DCL 200 Stereo Tube Compressor (2 channels compression)

8 X Channels of noise gate as follows:1 x Dramer DS 404 (Quad noise gate)2 x Aphex 622 (4 channels noise gate) Effects as follows: TC electronics M2000 digital reverbLexicon PCM 80 Lexicon MPX-1 Yamaha SPX 2000 Roland SDE3000 MONS: Soundcraft MH3 T.C. Electronic E.Q. Station with Motofader (12 mixes including cue wedge)
